INDUSTRIAL DESKTOP LABEL / BARCODE PRINTER
Click to See
TTP 2410M Pro Series Thermal Tranfer Printer Accessories

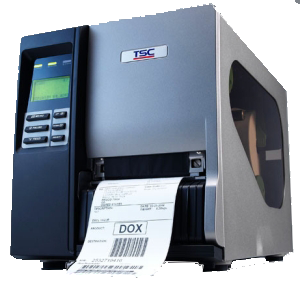

TTP-2410M Pro Series
Durable High-Speed Performance
The new high speed Pro Series features many improvements designed to increase the functionality and durability of TSCís flagship industrial printer line.

Pro Series enhancements
The TTP-2410M Pro Series is based on the proven TTP-2410M platform with many significant changes.  The new Pro Series features a separate die-cast aluminium base plate and backplane that includes a metal media supply spindle and sturdy two roller damper.  This new design results in a more durable printer that is suited for your most heavy-duty demand cycles.

Other enhancements include a new motor mount for quieter printing, a gap sensor lock to keep the label sensor from shifting, and a new anti-static ribbon brush.  Finally, TSC has added an optional USB Host option for applications that require the use of either a USB scanner or keyboard.
Superb resolution, great warranty
There are three models available with the TTP-2410M Pro Series.  The TTP-2410M Pro prints at 203 dpi at speeds up to twelve inches per second, TTP-346M Pro offers 300-dpi resolution at speeds up to eight inches per second, and the TTP-644M Pro features 600 dpi resolution which makes it ideal for printing very small 2D barcodes, graphics, fine print and other ultra-high-resolution images.  All TSC printers feature a standard two-year limited warranty.
Model
Printing Method
Resolution
Max. Print Width
Max. Print Length
Max. Print Speed
TTP-2410M Pro
Thermal Transfer
203 dpi
4.09"
160"
12 ips
TTP-346M Pro
Thermal Transfer
300 dpi
4.09"
73"
8 ips
TTP-644M Pro
Thermal Transfer
600 dpi
4.09"
40"
4 ips
TTP-246M Pro
Thermal Transfer
203 dpi
4.25"
90"
8 ips
TTP-344M Pro
Thermal Transfer
300 dpi
4.09"
40"
6 ips
TTP-2410M Pro Series  Brochure
